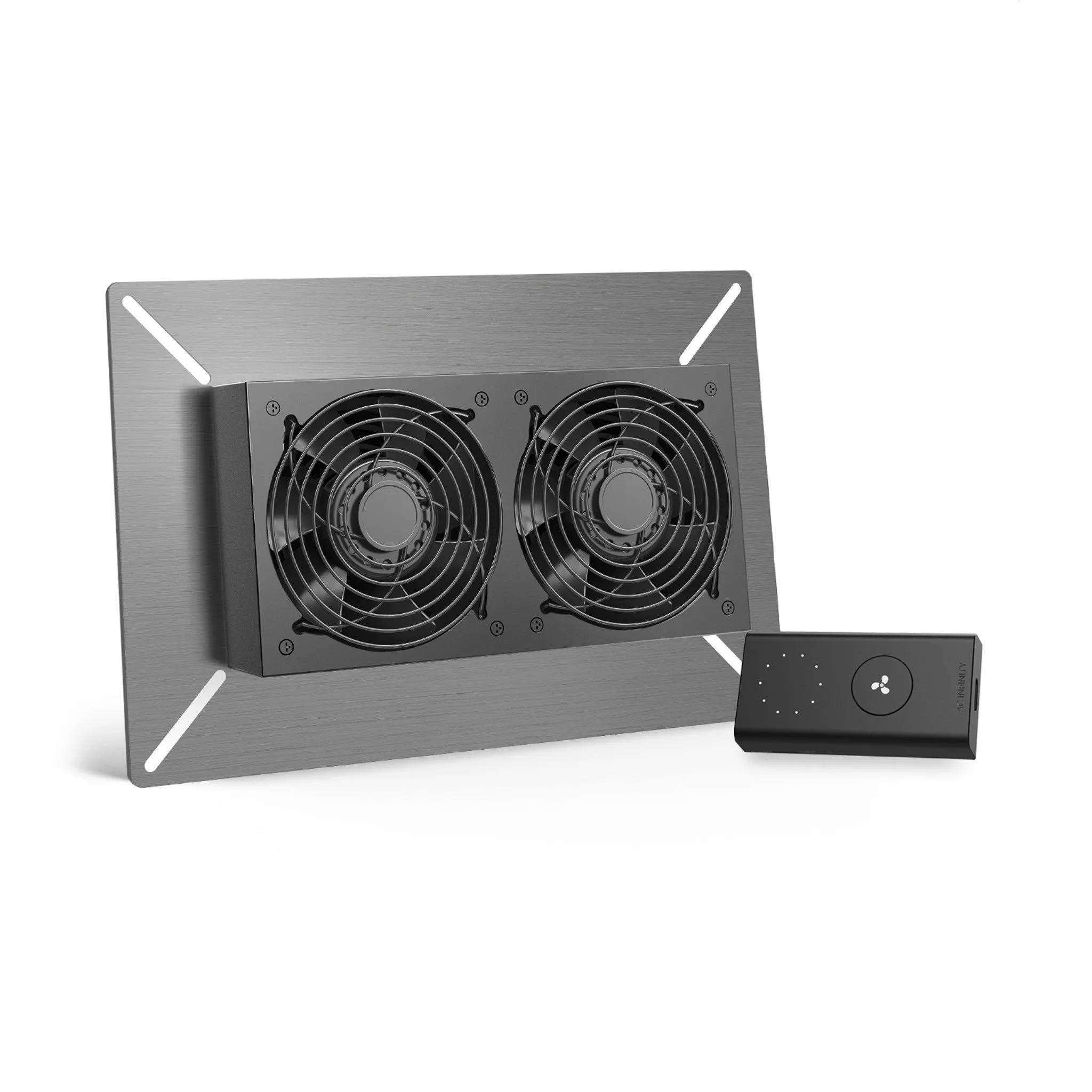

AC Infinity AIRTITAN S7 Crawl Space Fan With Speed Controller - 12 inch

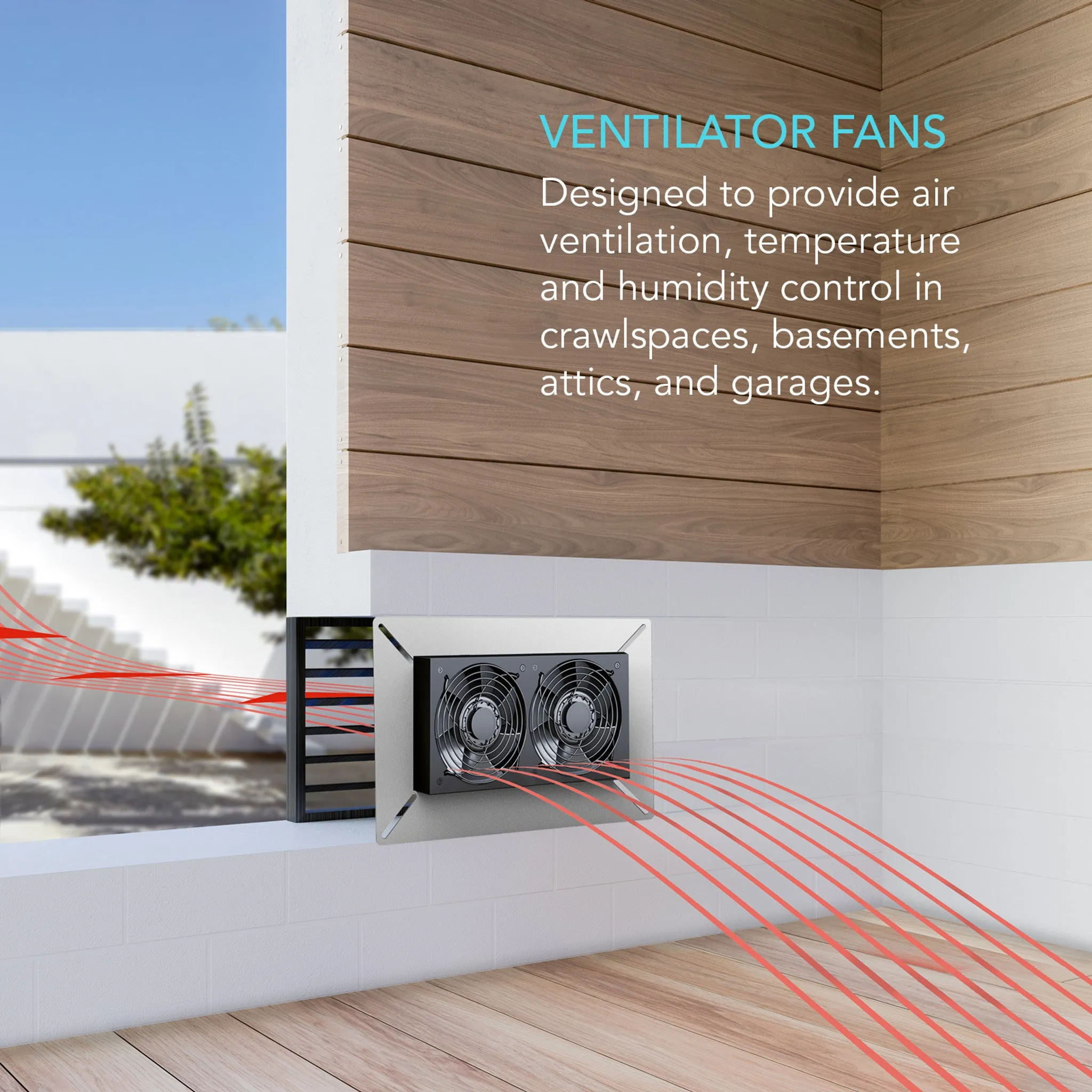

A high-airflow ventilator fan designed to control the temperature and humidity levels of your crawlspace, basement, attic, and garage. This system reduces humidity levels while expelling odors and stale air from your home. It features dual 120mm PWM-controlled fans that are highly efficient in maximizing airflow at lower noise and power levels. The fans are IP-55 rated to resist liquid and dust entry and are housed in a stainless steel mounting frame. Equipped with an easy-to-use corded speed controller with 10 fan speeds. This product is a part of the UIS™ platform of devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Features:
- A high-airflow fan designed to provide temperature and moisture control for crawl spaces and basements.
- Reduces humidity by creating exhaust airflow to expel foul odors and stale air from your home.
- Includes 10-speed fan controller featuring power switch and backup memory with 10 ft. extension cord.
- Heavy-duty anodized aluminum frame with IP-55 rated fans to be highly resistant to liquids and dust.
- Dims.: 13.9 x 9.0 x 1.6 in. | Airflow: 240 CFM | Config.: Exhaust | Noise: 32 Dba | Bearings: Dual Ball

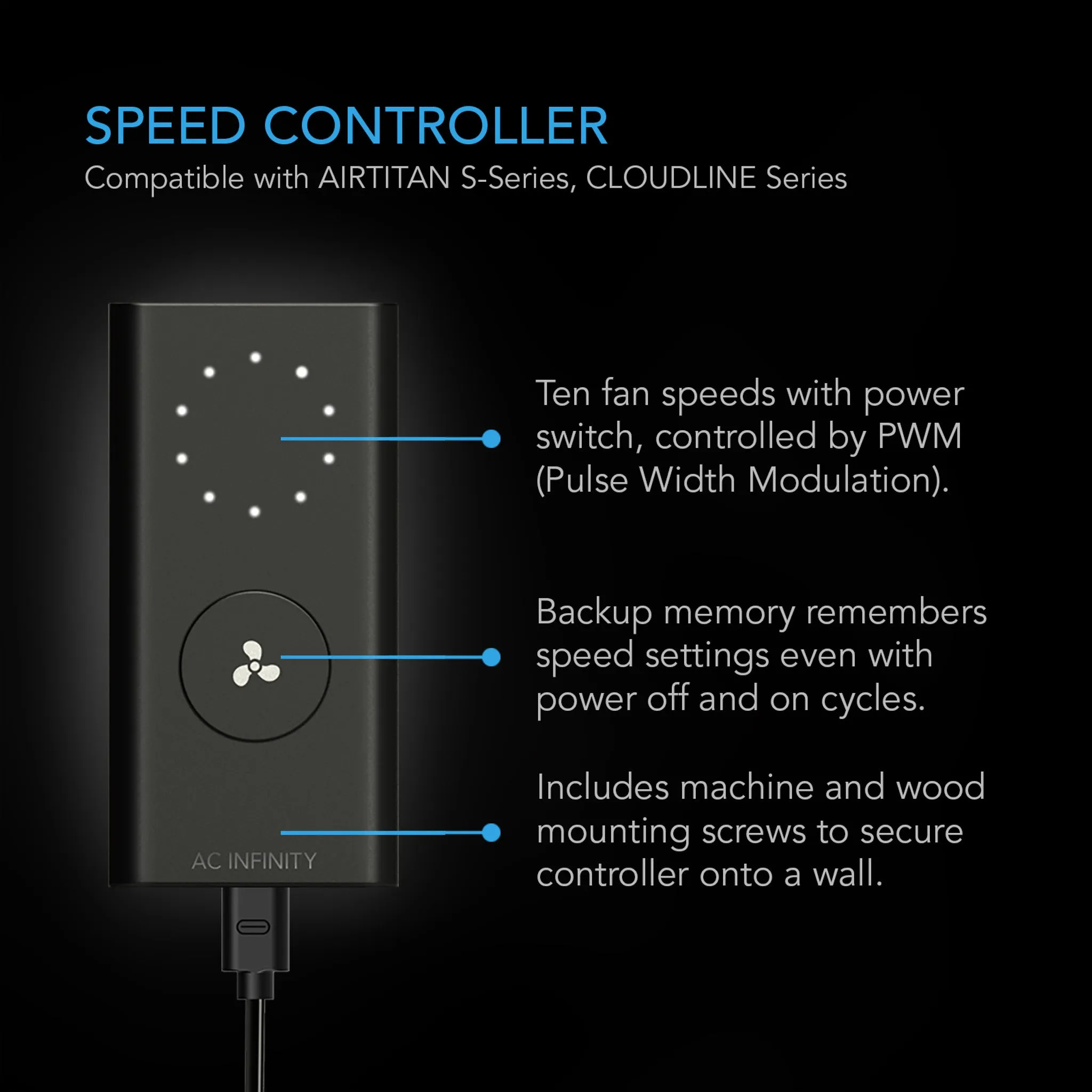

Speed Controller

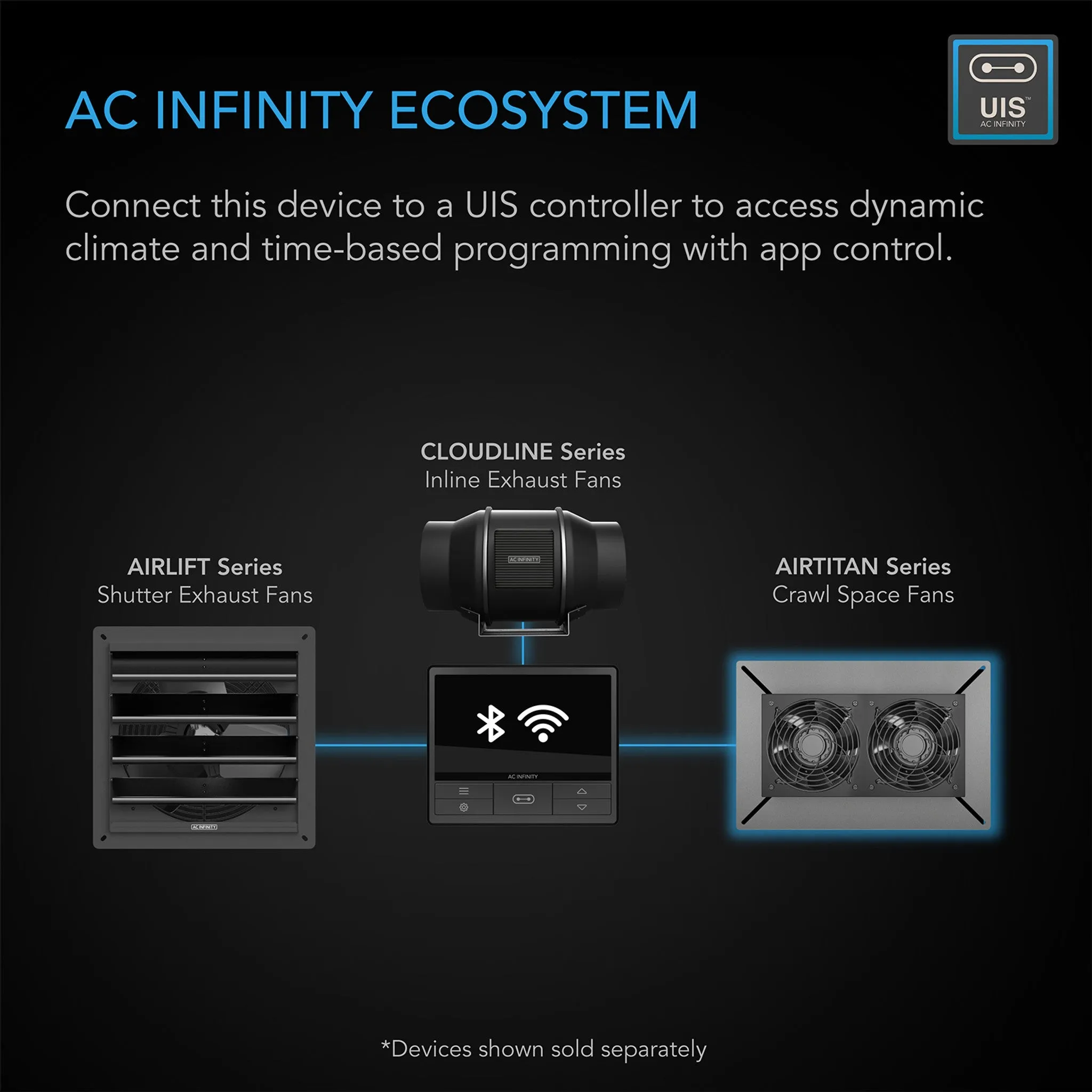

The speed controller enables you to set the crawlspace fan’s speed to optimal noise and airflow levels for various environments. This system is equipped with a DC motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten speed options are available with power switch and backup memory. This model can connect to the following UIS controllers:
- CONTROLLER 63
- CONTROLLER 67 (with UIS to Molex Adapter)
- CONTROLLER 69
Heavy Duty Performance

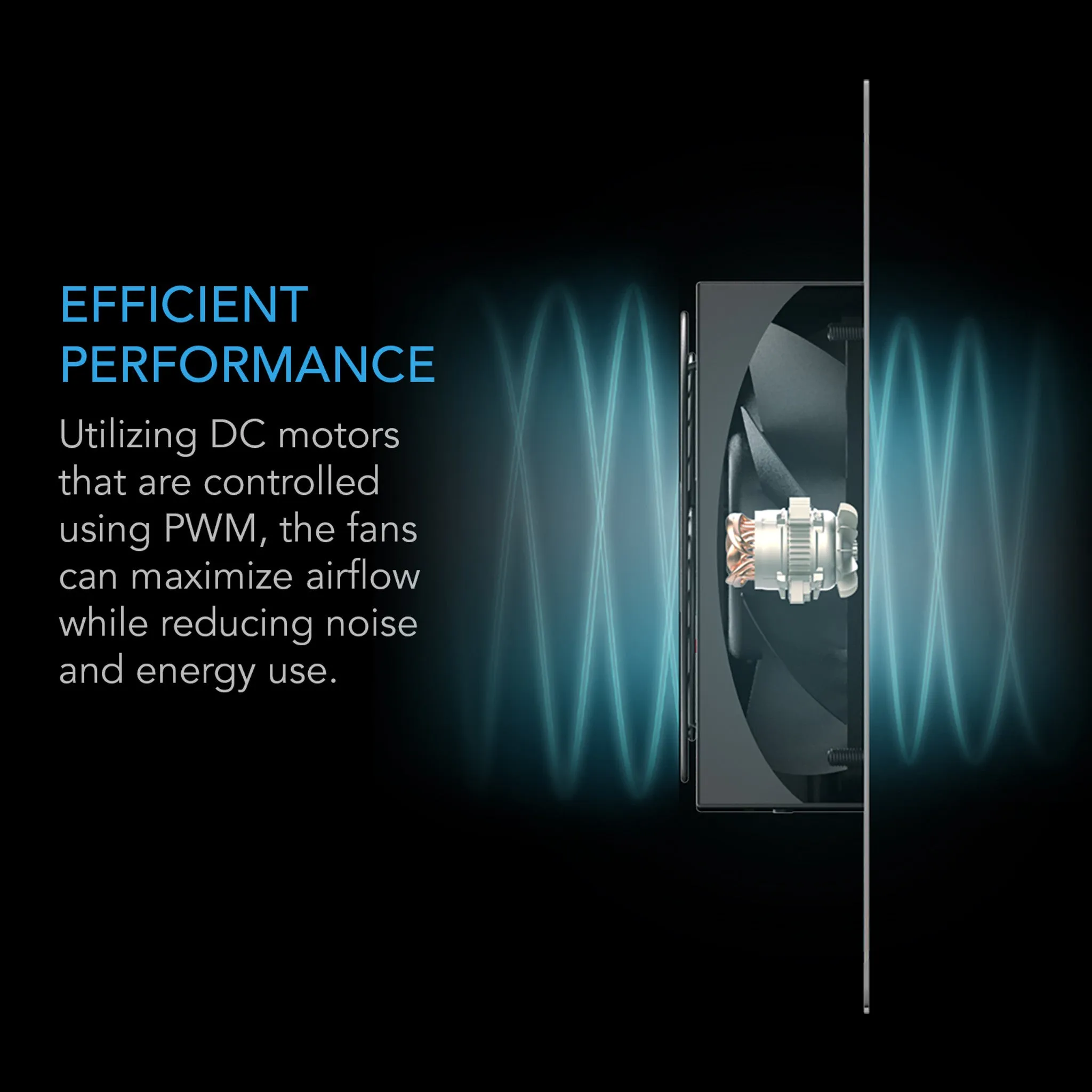

The fan system is enclosed in heavy-duty aluminum with spiral fan guards. Utilizing a DC motor that is controlled using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. In addition, they use dual-ball bearings rated at 67,000 hours and is IP-55 rated to be highly resistant to liquids and dust particles.

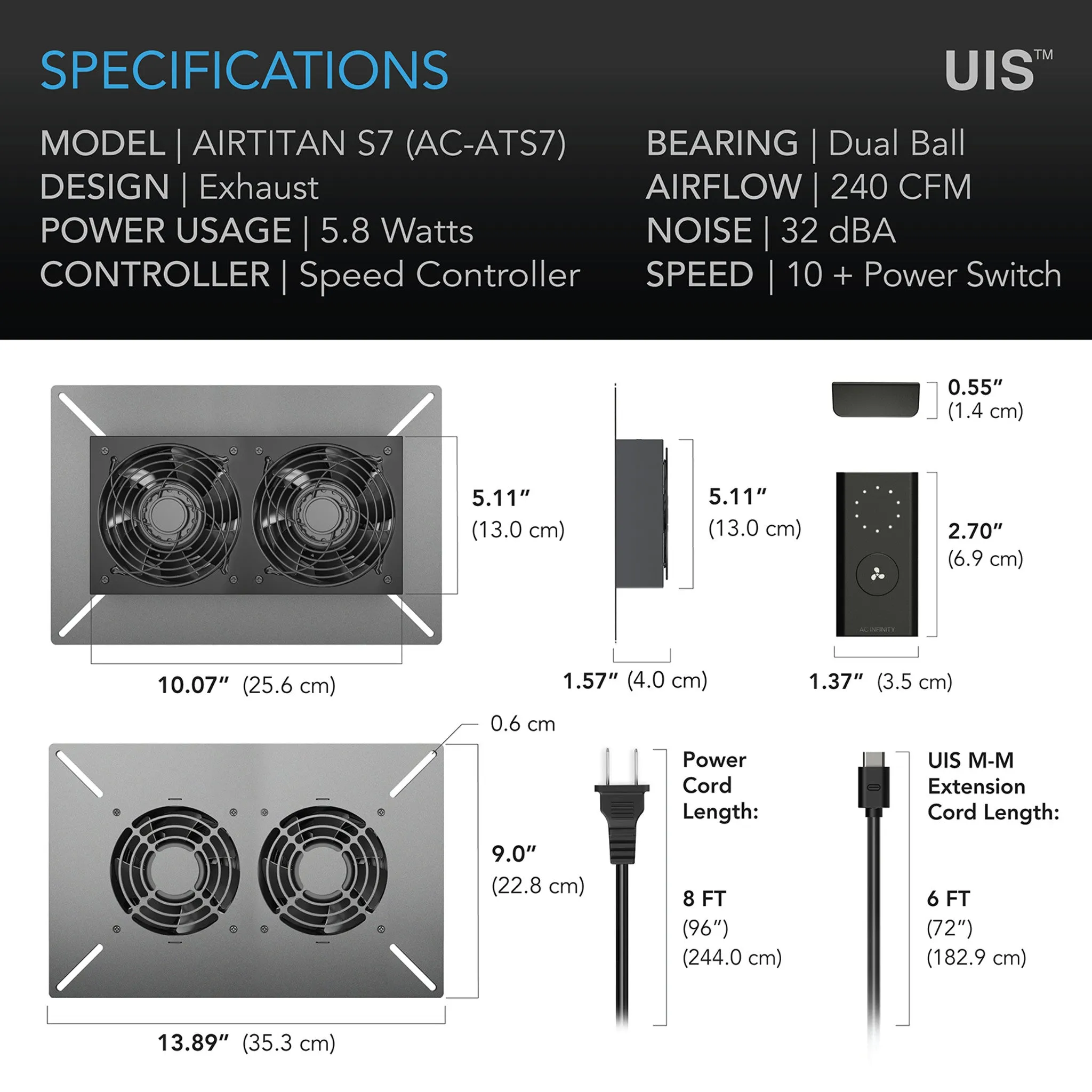

Technical Specifications:
| Manufacturer | AC Infinity Inc. |
| Product Name | AIRTITAN S7 |
| Product Model | AC-ATS7 |
| UPC Code | 819137023734 |
| Total Dimensions | 13.89 x 9.00 x 1.57 in. (35.3 x 22.8 x 4.0 cm) |
| Backside Enclosure Dimensions | 5.11 x 10.07 in. (13.0 x 25.6 cm) |
| Power Cord Length | 96 in. (8 feet) |
| UIS Cord Length | 72 in. (6 feet) |
| Total Airflow | 240 CFM |
| Total Noise | 32 dBA |
| Static Pressure | 5.4 mm-H2O |
| Operating Voltage | 4 to 13.2V DC |
| Power | 2.4 W |
| Current | 0.2 A |
| Wall Adapter Input | 100 to 240V AC |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 14 to 158°F |
| Fan Bearings | Dual Ball |
| Life Expectancy | 50,000 Hours |
| Waterproof Rating | IP55 |
