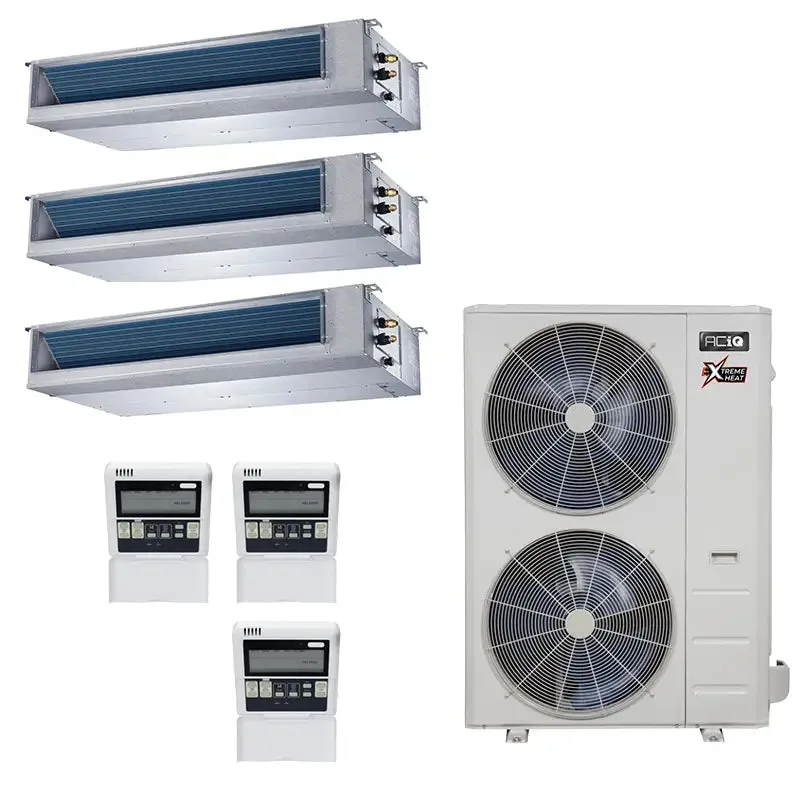

39,000 BTU 22.2 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9 12 18

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series 39,000 BTU 22.2 SEER2 3-Zone Concealed Duct Mini Split System, you get higher SEER and better low ambient (hyper heat) performance than the competition.

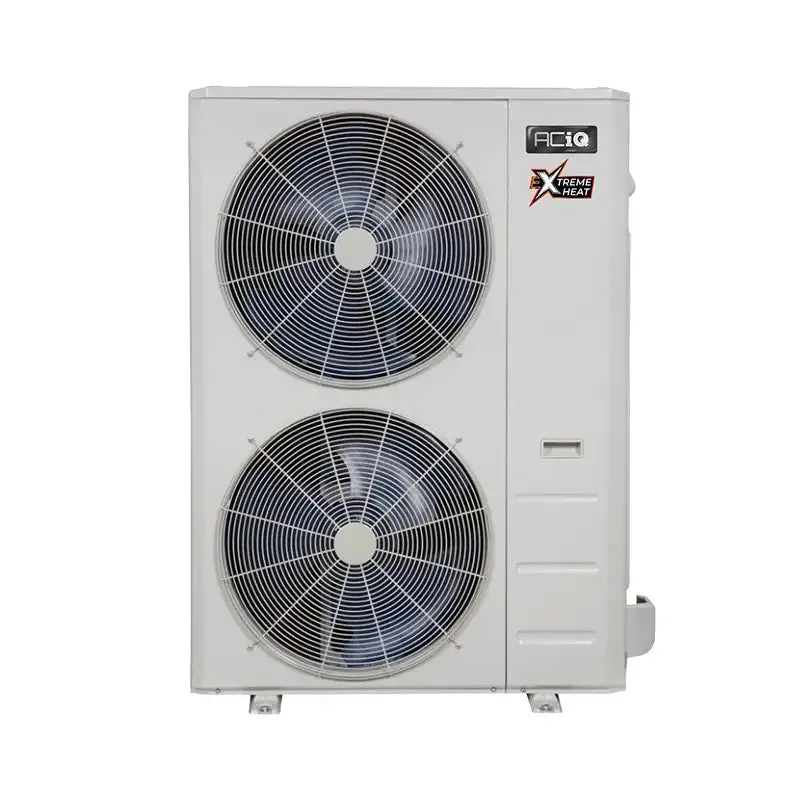

36,000 BTU ACiQ Multi Zone Condenser​ w/Max Heat

The 36,000 BTU, ACiQ-36Z-HH-M4 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.2 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Features:

• 36,000 BTU, 22.2 SEER2 multi zone heat pump condenser

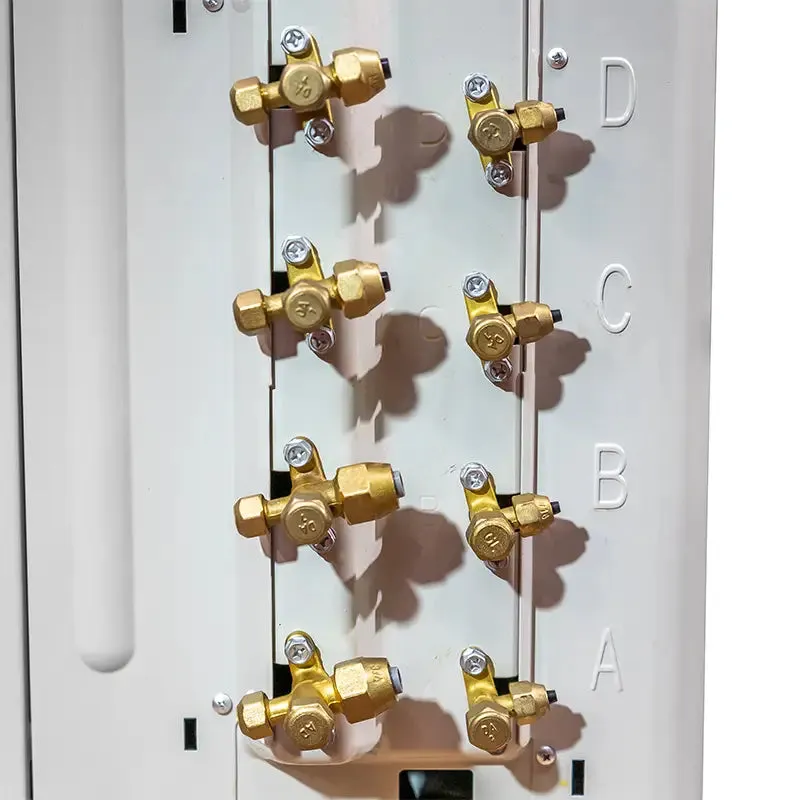

• Designed to function with up to 4 attached air handlers

• Efficient cooling from -22 F to 122 F outdoor temperatures

• Efficient heating from -22 F to 75 F outdoor temperatures

• Integrated Max Heat technology with base pan heater

• Gold Fin full-protection coating on condenser coil

• Quiet operation at even the highest workloads

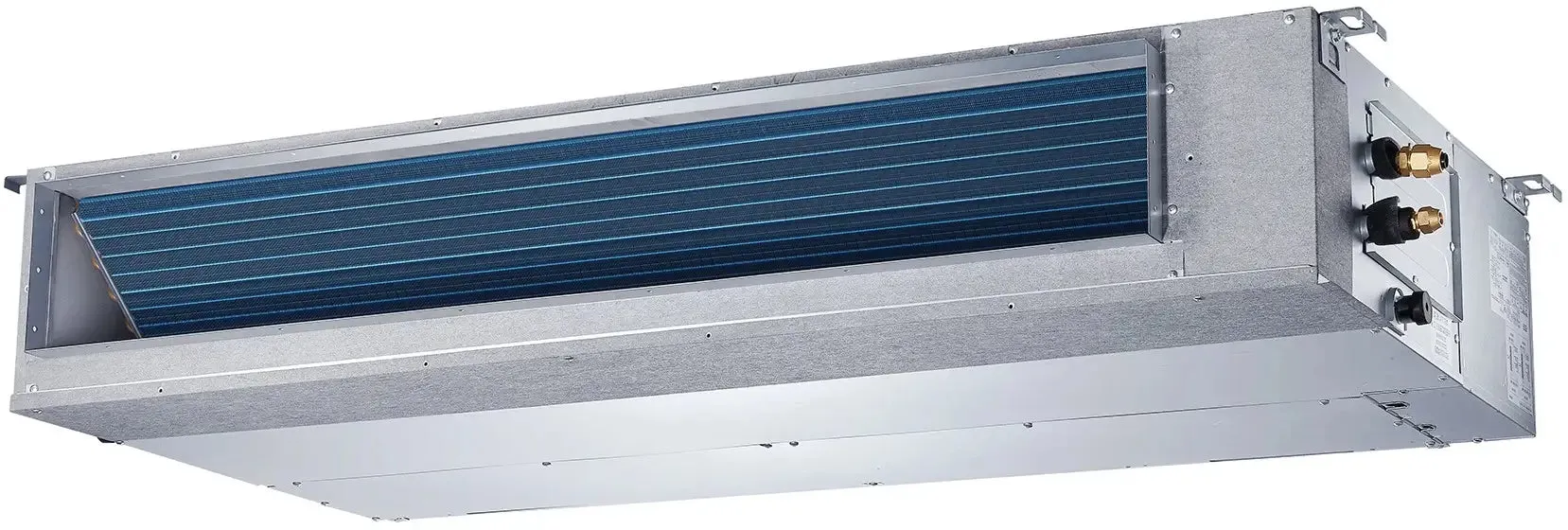

Concealed Duct ACiQ Mini-Split Air Handler

ACiQ's concealed duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Features:

• 9,000 BTU of heating or cooling, ideal for spaces up to 450 square feet (depending on climate)

• 12,000 BTU of heating or cooling, ideal for spaces up to 600 square feet (depending on climate)

• 18,000 BTU of heating or cooling, ideal for spaces up to 1000 square feet (depending on climate)

• Dry and Fan modes also available

• Wall mounted thermostat included

Condensor Specifications:

9K BTU Air Handler Specifications

12K BTU Air Handler Specifications:

18K BTU Air Handler Specifications:

Product Information and Guides:

Condenser

9K BTU Air Handler

12K BTU Air Handler

18K BTU Air Handler
