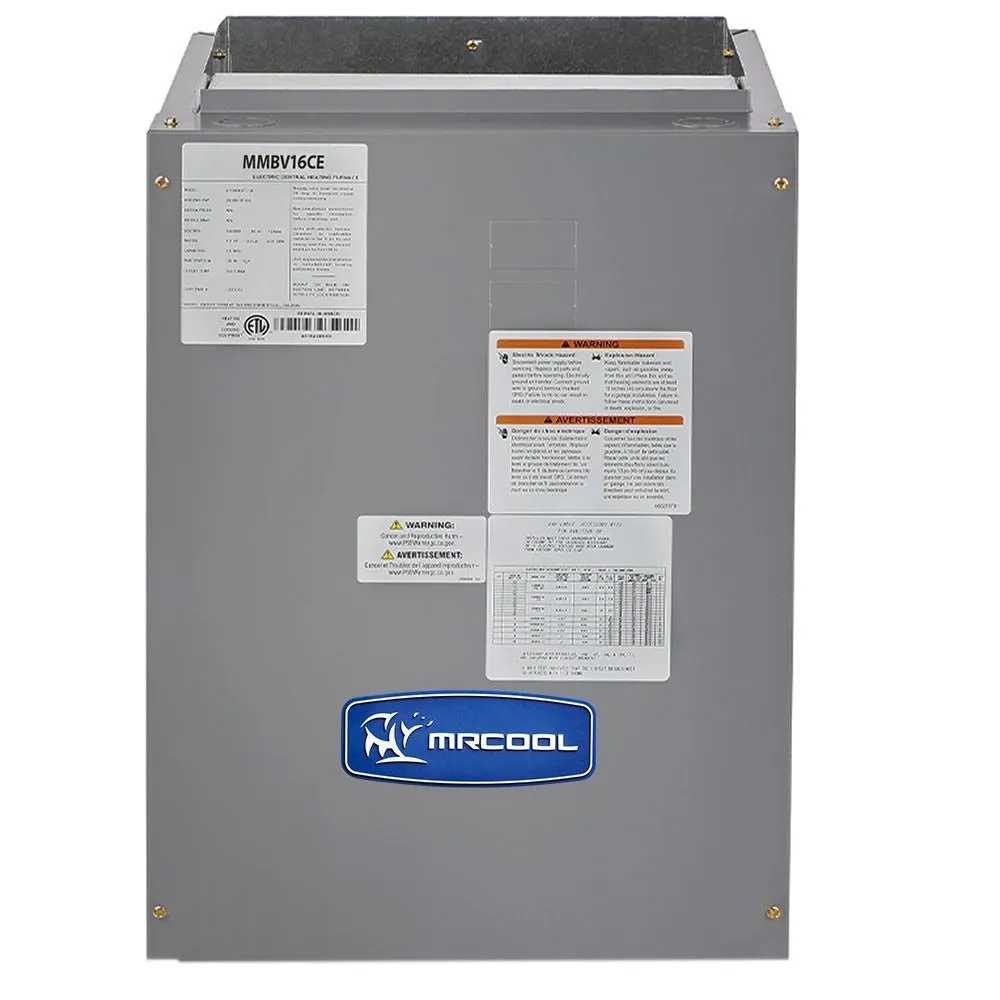

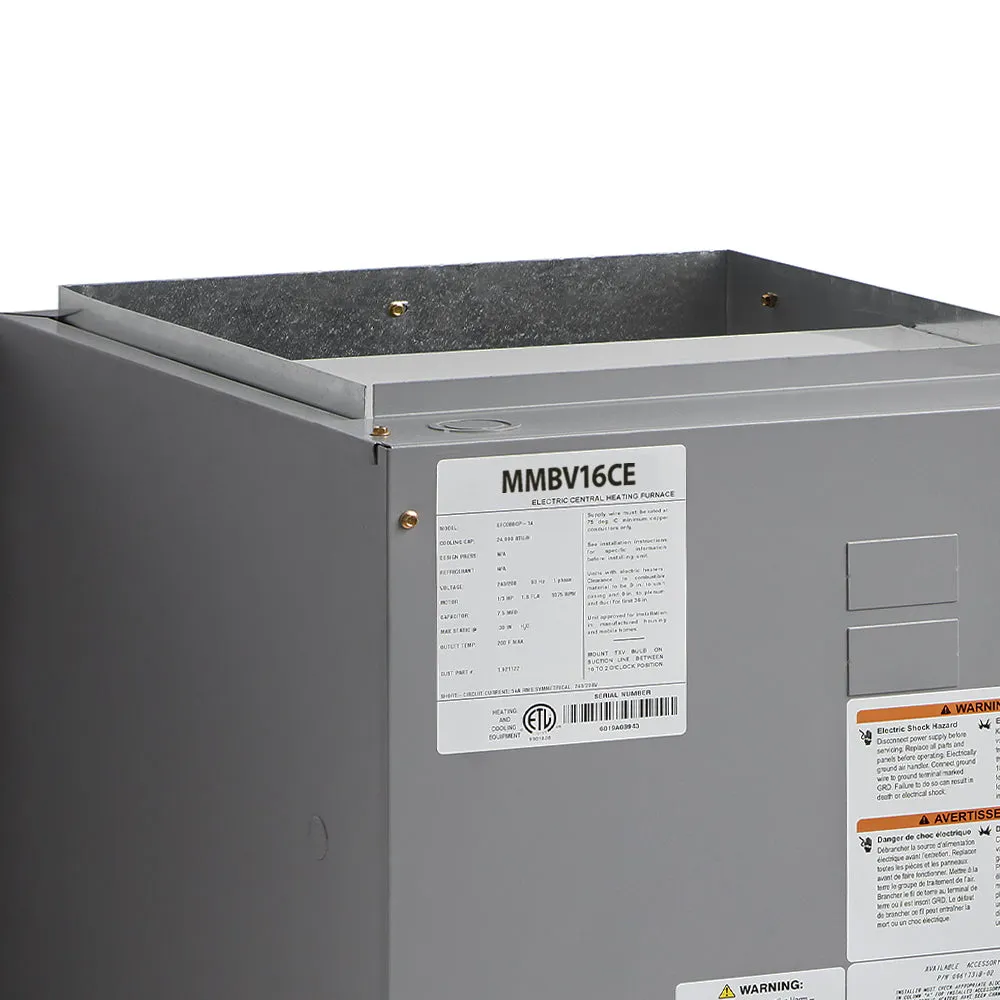

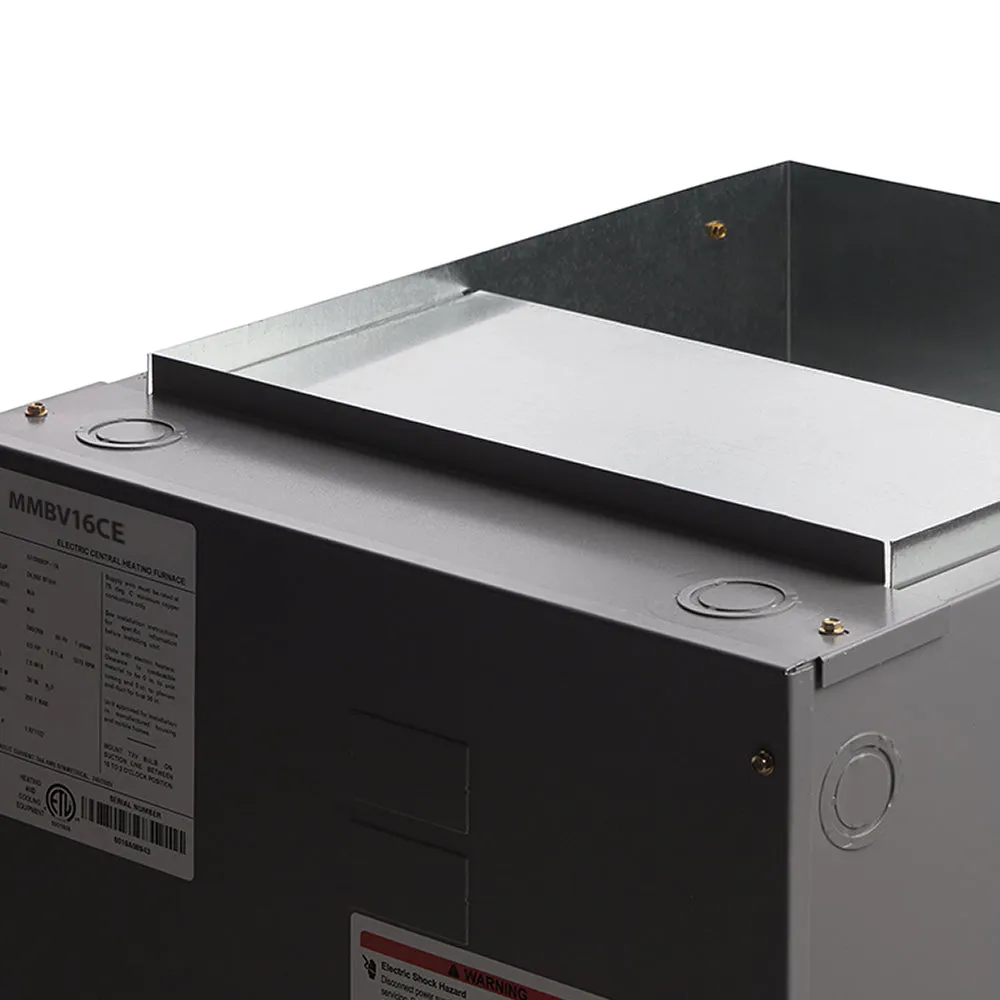

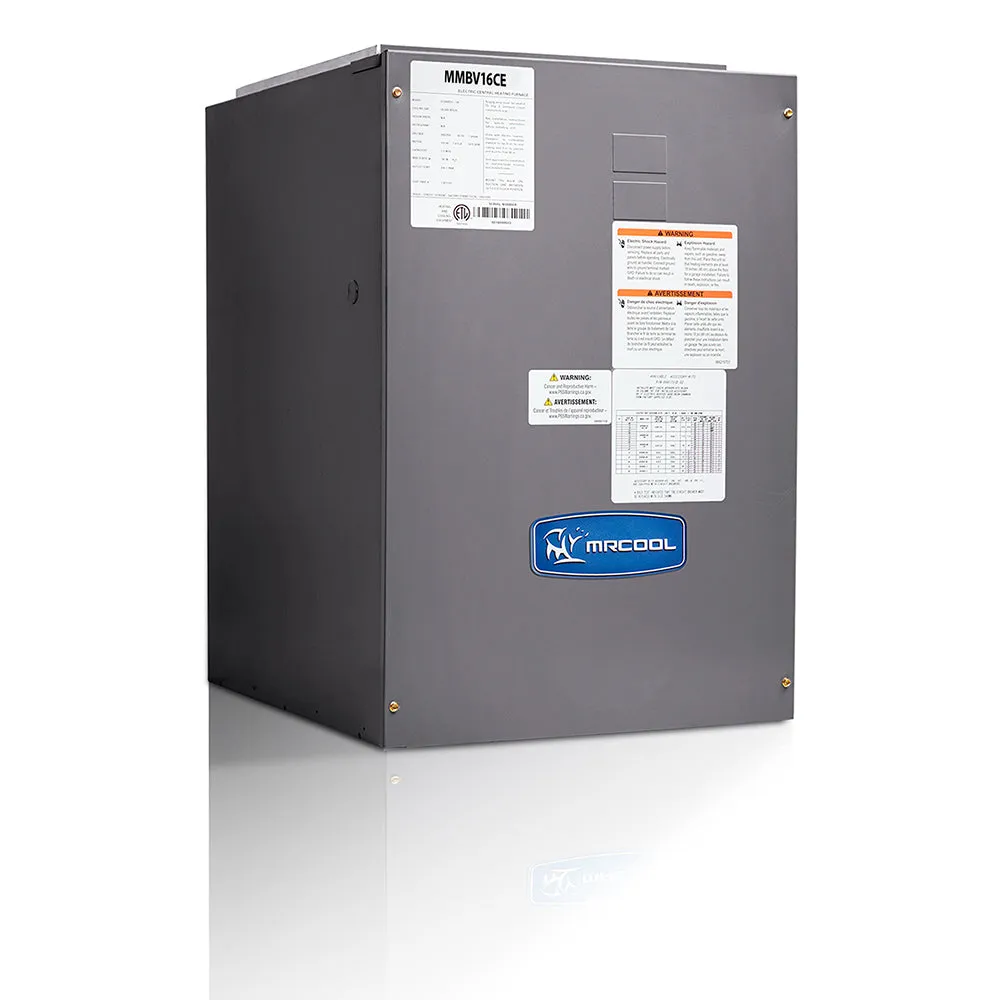

3 Ton Variable Speed MRCOOL® Signature Modular Blower - Multiposition - 17.5" Cabinet
The MRCOOL Multi-Position Modular Blower is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Modular Blower, you can always know that you are being energy and time efficient.
Features:
- Cabinet dimensions match standard furnace widths
- Painted galvanized cabinet
- ECM variable speed motors
- Field installed 5-20 kW heat strips
- Factory installed fan relays for non-heat strip installations
- 10 year limited parts warranty
- ETL and ETLC approved
- AHRI certified
- Variable speed blower motor
- Upflow, counterflow, and horizontal configurations
- Approved for installation in manufactured housing and mobile homes
- Made in the USA
Specifications:
| BRAND | MRCOOL® |
| MODEL | MMBV12BE |
| UPC | 810512032792 |
| UNIT TYPE |
Modular Blower |
| CONFIGURATION | Upflow, counterflow, and horizontal |
| CFM | 1210 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) |
400-1210 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) |
15 |
| MIN CIRCUIT AMPACITY (A) |
2.9 |
| COLOR | Gray |
| COLOR FAMILY |
Gray |
| MAX COVERAGE AREA |
1500 |
| REFRIGERANT TYPE |
R-410A |
| NUMBER OF SPEEDS |
Variable |
| INVERTER | No |
| BLOWER MOTOR TYPE |
ECM |
| BLOWER MOTOR HP |
1/2 |
| BLOWER MOTOR SPEEDS |
Variable Speed |
| FILTER TYPE |
Replaceable |
| FILTER SIZE |
14x25(2) |
| AUXILIARY HEATER SIZES |
15kw |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| ISO CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
10 Year Limited Parts Warranty |
| REGISTERED PARTS WARRANTY |
10 Year Limited Parts Warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
| NET DEPTH (IN) |
21.00 |
| NET HEIGHT (IN) |
25.00 |
| NET WIDTH (IN) |
17.50 |
| NET WEIGHT (LBS) |
72.00 |
| GROSS DEPTH (IN) |
23.50 |
| GROSS HEIGHT (IN) |
27.00 |
| GROSS WIDTH (IN) |
20.00 |
| GROSS WEIGHT (LBS) |
86 |
