2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler 208/230V - MVP-30-HP-MUAH-230-25
2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler 208/230V - MVP-30-HP-MUAH-230-25
  • DefaultTitle

$ 86.74

$ 66.72

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler 208/230V - MVP-30-HP-MUAH-230-25

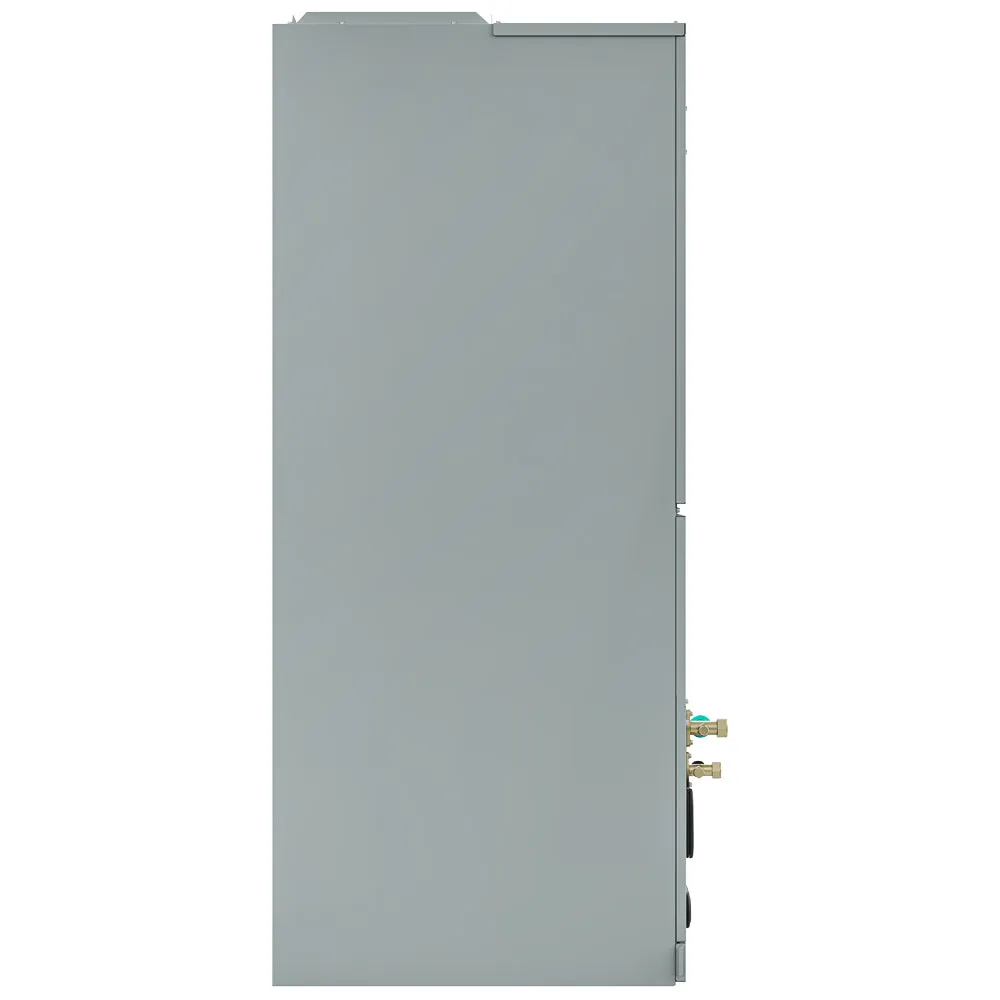

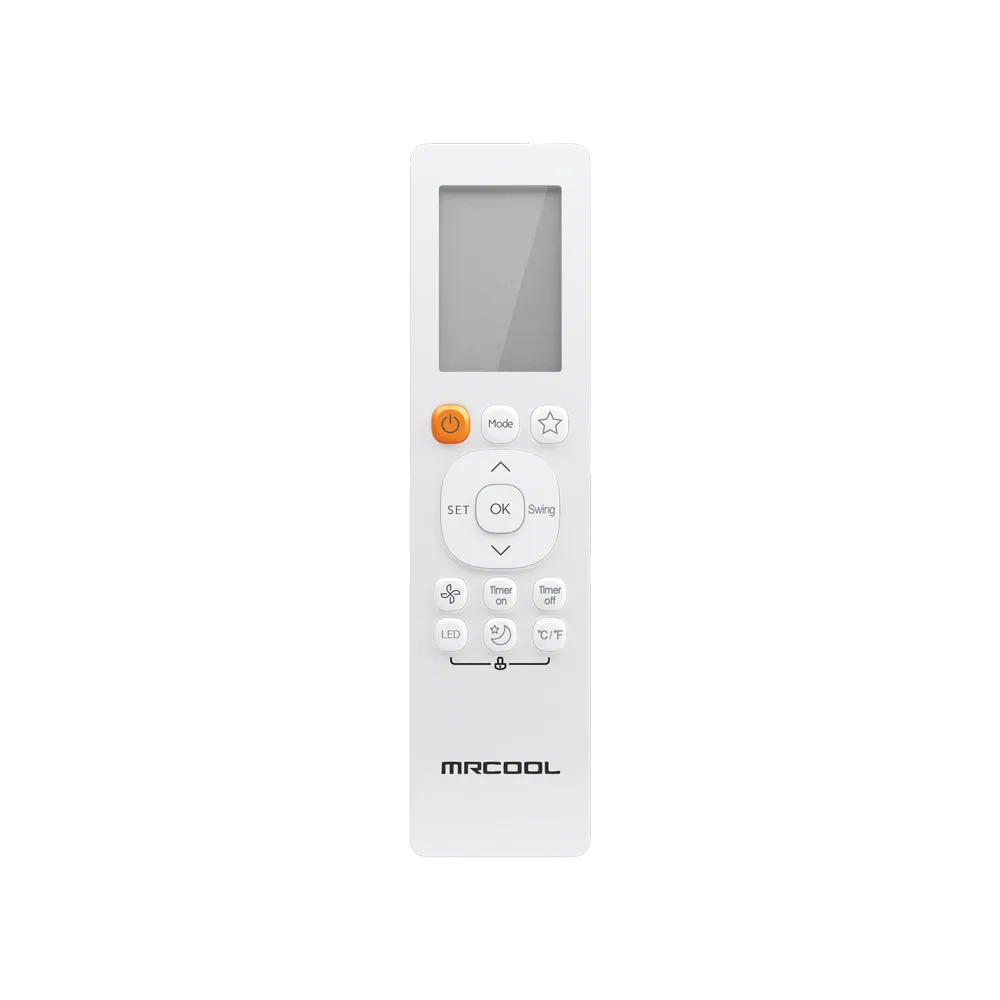

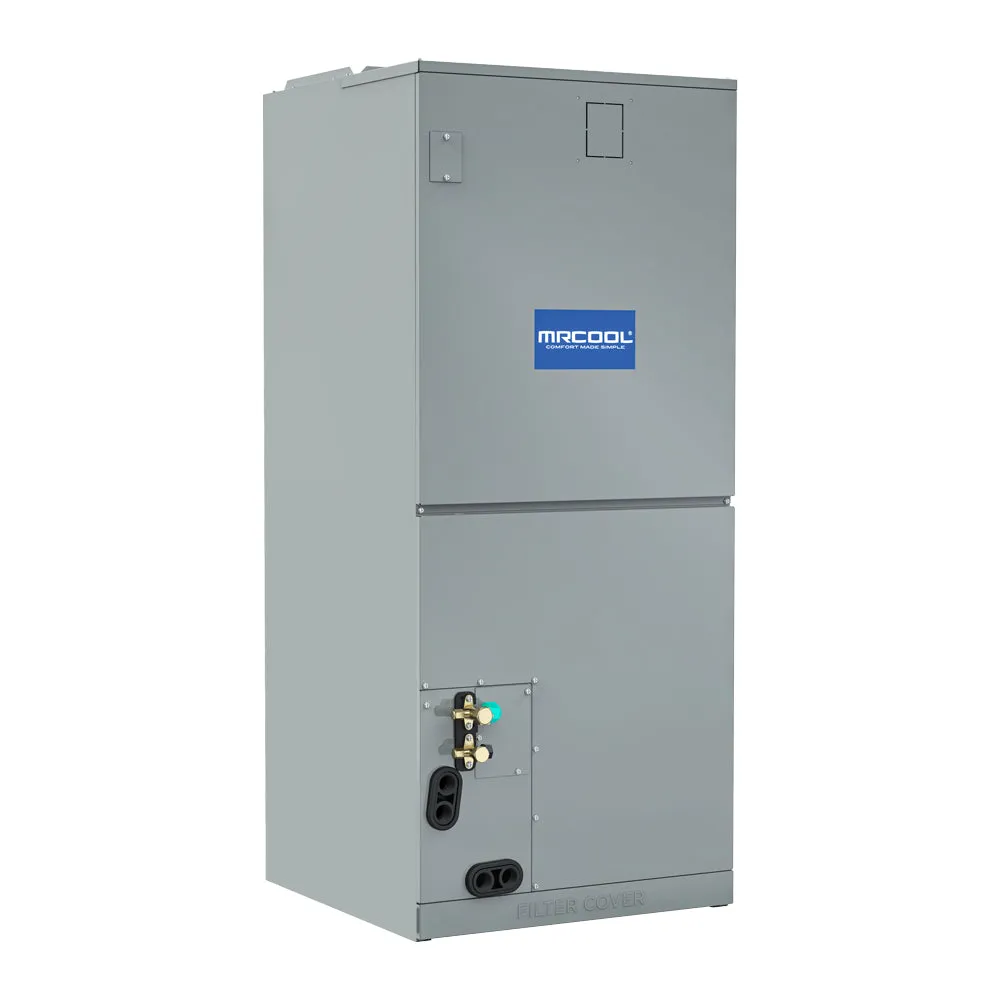

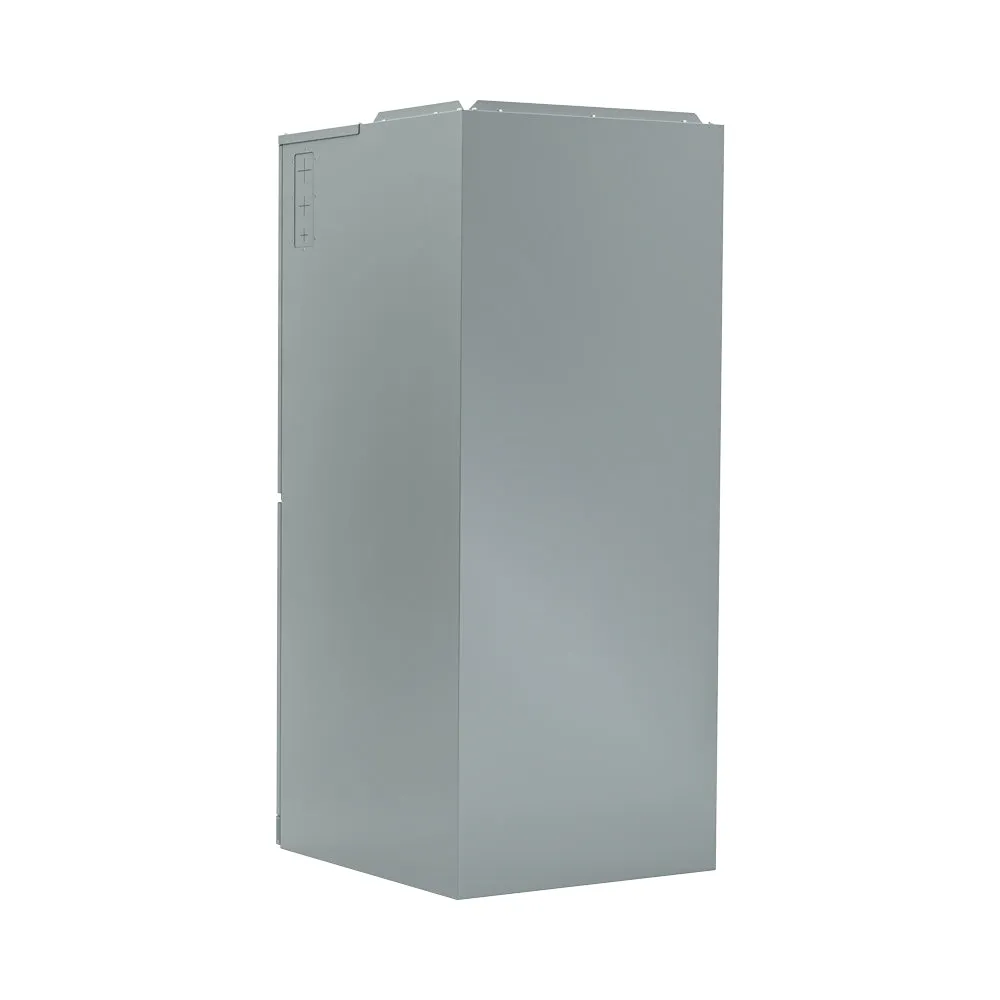

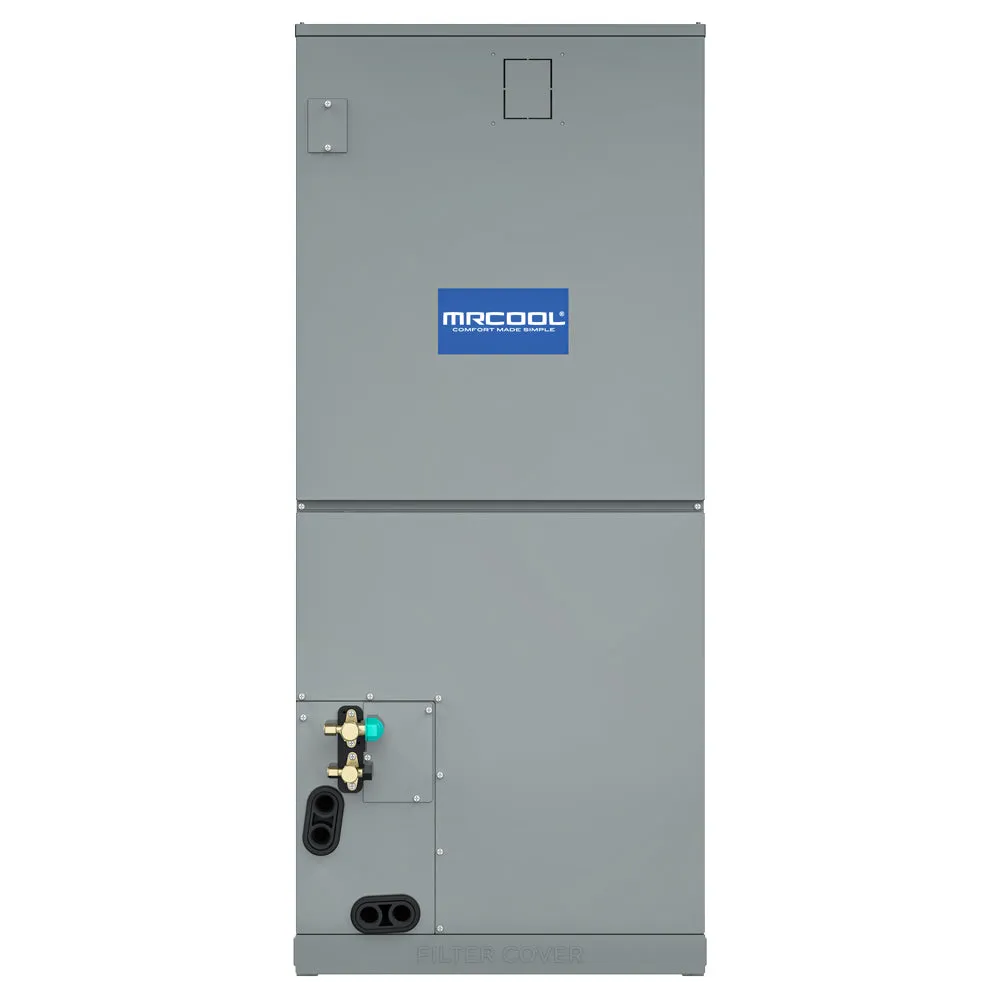

The 2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler offers a prudent and economical solution to maintain ideal indoor temperatures year-round, providing efficiency, quiet operation, and effectiveness. With a SEER2 rating of 16.5, this handler efficiently caters to spaces of approximately 1250 square feet, serving as a reliable upgrade from older units. Constructed from robust painted galvanized steel, the MRCOOL® VersaPro Central Ducted Air Handler ensures durability and longevity in serving your household. Maintenance is simplified with its easily removable filter and self-diagnostic panel, facilitating quick identification and resolution of any issues. Installation versatility is another standout feature of this air handler, providing multiple positioning options including upflow, downflow, and horizontal orientations, both left and right. Thanks to the 25-foot Quick Connect® precharged line set, installation is straightforward and hassle-free. Each line set comes precharged with eco-friendly R-410A refrigerant, eliminating the need for additional vacuuming. Moreover, an optional heat kit is available for enhanced functionality. Equipped with a wireless remote featuring the innovative Follow Me function, this air handler automatically adjusts airflow temperature based on the remote's location within the room, ensuring consistent comfort regardless of your whereabouts. Additionally, the inclusion of a wired thermostat provides convenient and reliable temperature control in any area. Investing in the 2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler comes with the added peace of mind of a 10-year parts and compressor warranty provided by MRCOOL®. This comprehensive warranty coverage further enhances the value of this top-tier air handler, offering homeowners hassle-free protection and assurance.

Specifications:

BRAND MRCOOL
MODEL

MVP-30-HP-MUAH-230-25

SERIES VersaPro
GTIN 00840255577557
UPC 840255577557
CFM

1088.24/894.12/805.88/711.76

TONNAGE 2.5

VOLTAGE (V)

208-230

PHASE 1
CYCLE 60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

4.5

RATED LOAD

3.5

DECIBEL RATING (DBA)

40.5

DECIBEL RATING LOW (DBA)

36.5

DECIBEL RATING HIGH (DBA)

43.5

MAX LINE SET LENGTH (FT)

164.04

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

APP COMPATIBILITY

Yes

AHRI CERTIFIED

Yes

BASE PARTS WARRANTY

10 years

BASE COMPRESSOR WARRANTY

10 years

CONTAINS ELECTRONICS

Yes

NET DEPTH (IN)

21.02

NET HEIGHT (IN)

49.02

NET WIDTH (IN)

21.02

NET WEIGHT (LBS)

128.53

GROSS DEPTH (IN)

24.41

GROSS HEIGHT (IN)

52.56

GROSS WIDTH (IN)

26.57

GROSS WEIGHT (LBS)

157.41

RESOURCES
