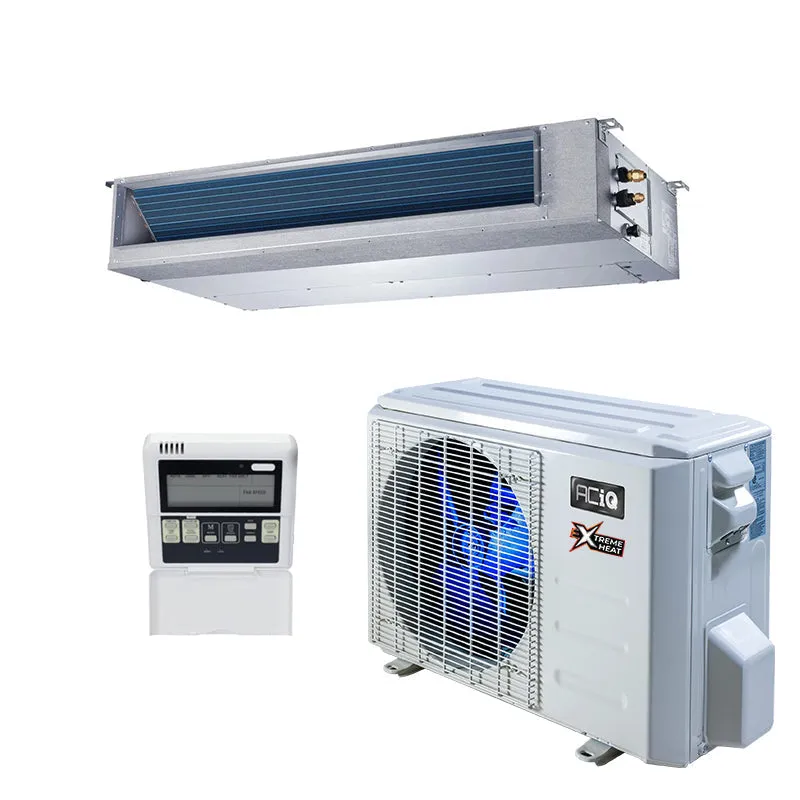

18,000 BTU 21 SEER ACiQ Platinum Single Zone Concealed Duct Mini Split System w/ Extreme Heat - ACiQ-18ZPL-HP230B / ACiQ-18CD-HH-MB
ACiQ’s mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
Features:
- Intelligent comfort at an affordable cost
- Ideal for spaces ranging from 600 - 900 square feet (depending on climate)
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- Included Smart Remote
- WiFi compatibility through free app, Amazon Alexa or Google Assistant

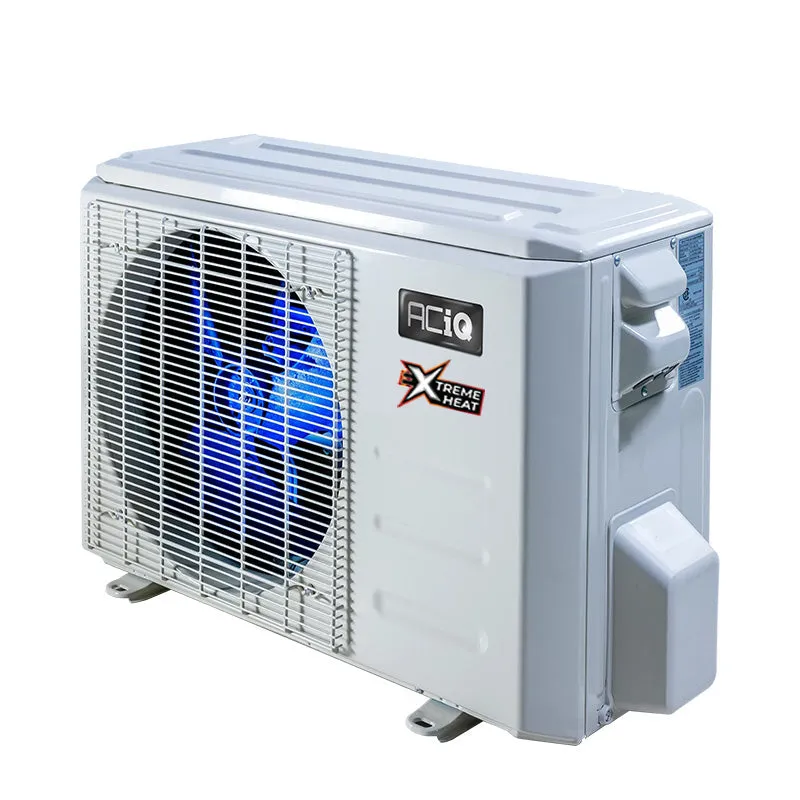

Condenser Specifications:
| Brand |
ACiQ |
| Model |
ACiQ-18ZPL-HP230B |
| Weight (in lbs) |
108.03 |
| AHRI Certificate Number |
210857317 |
| HSPF |
8.3 |
| HSPF2 |
11.3
|
| Cooling BTU |
18,000 BTU
|
| Heating BTU |
18,000 BTU
|
| Decibel Level (dBA) |
59 |
| Electric Heat |
Heat Pump
|
| Compressor Type |
Twin Rotary |
| Energy Star |
Yes |
| Refrigerant |
R410A |
| SEER1 (Efficiency) |
21 |
| SEER2 (Efficiency) |
21.5
|
| EER |
12.5 |
| Electrical |
208/230V | 1 Phase | 60 Hz
|
| Max Breaker Size |
25 |
| Min. Breaker Size |
20 |
| Tonnage |
1.5 Ton
|
| BTU/Tonnage |
18,000 BTU/1.5 Ton
|
| Min/Max Outdoor Temp for Heating |
-22~75 F / -30~24 C
|
| Min/Max Outdoor Temp for Cooling |
-22~122 F / -30~50 C
|
| Zone Compatibility |
Single Zone
|
| Certification |
Energy Star, NEEP, UL AHRI
|
| Height |
26.5"
|
| Width |
35.04"
|
| Depth |
13.46"
|
| Warranty |
12-Year Compressor / 7-Year Parts with Registration
|
| Safety Information |
PROPOSITION 65 WARNING
|

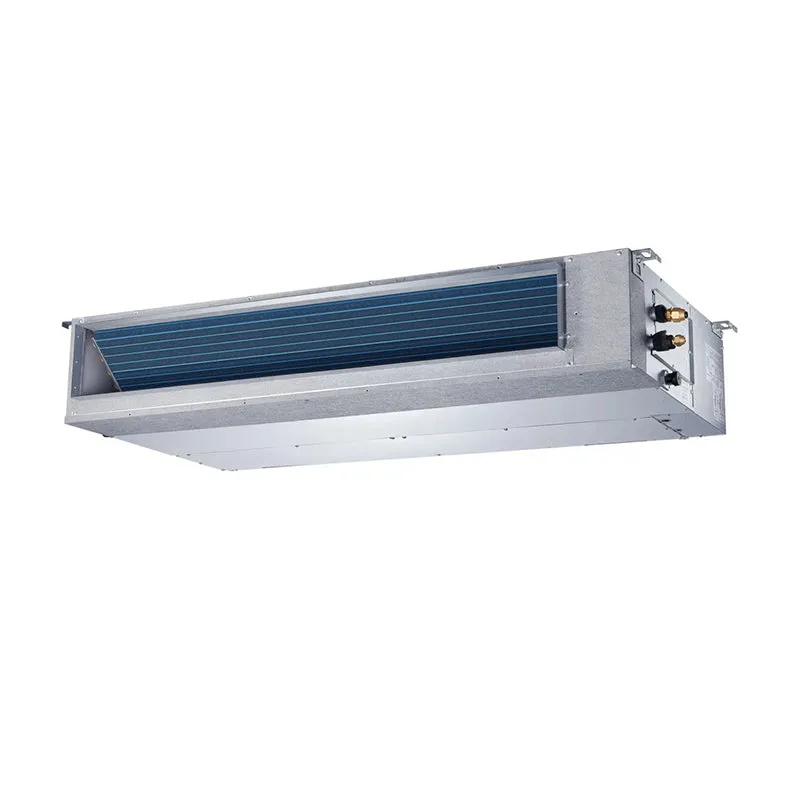

Air Handler Specifications:
| Brand |
ACiQ |
| Model |
ACIQ-18CD-HH-MB
|
| Weight (in lbs) |
67 |
| Cooling BTU |
18,000 BTU
|
| Heating BTU |
18,000 BTU
|
| Maximum CFM |
529.41 |
| Decibel Level (dBA) |
As low as 35
|
| Electric Heat |
Heat Pump
|
| Refrigerant |
R410A |
| Liquid Line |
1/4"
|
| Suction Line |
1/2"
|
| Electrical |
208/230V 1 Phase 60Hz
|
| Phase |
Single Phase
|
| Max Breaker Size |
25 |
| Min. Breaker Size |
20 |
| BTU/Tonnage |
18,000 BTU/1.5 Ton
|
| Mini-Split Type |
Concealed Duct
|
| Zone Compatibility |
Multi Zone
|
| Height |
8.27"
|
| Width |
34.65"
|
| Depth |
26.54"
|
| Warranty |
12 year compressor, 7 year parts with online registration
|
| Safety Information |
PROPOSITION 65 WARNING
|
Product information and Guides:
