1.5 - 5 Ton 14.3 SEER2 Air-Con Saturn Series Heat Pump Air Conditioner System Multi Positional

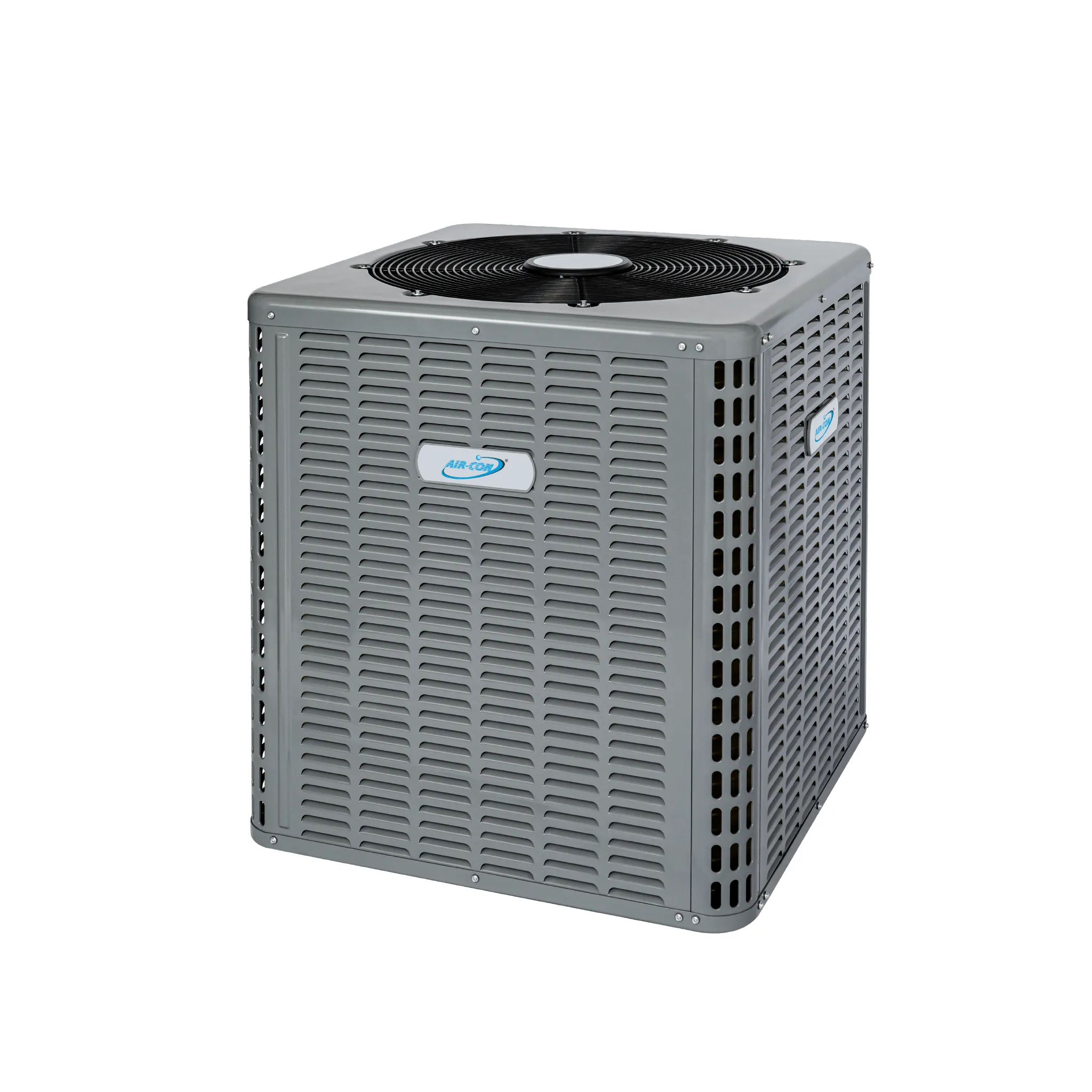

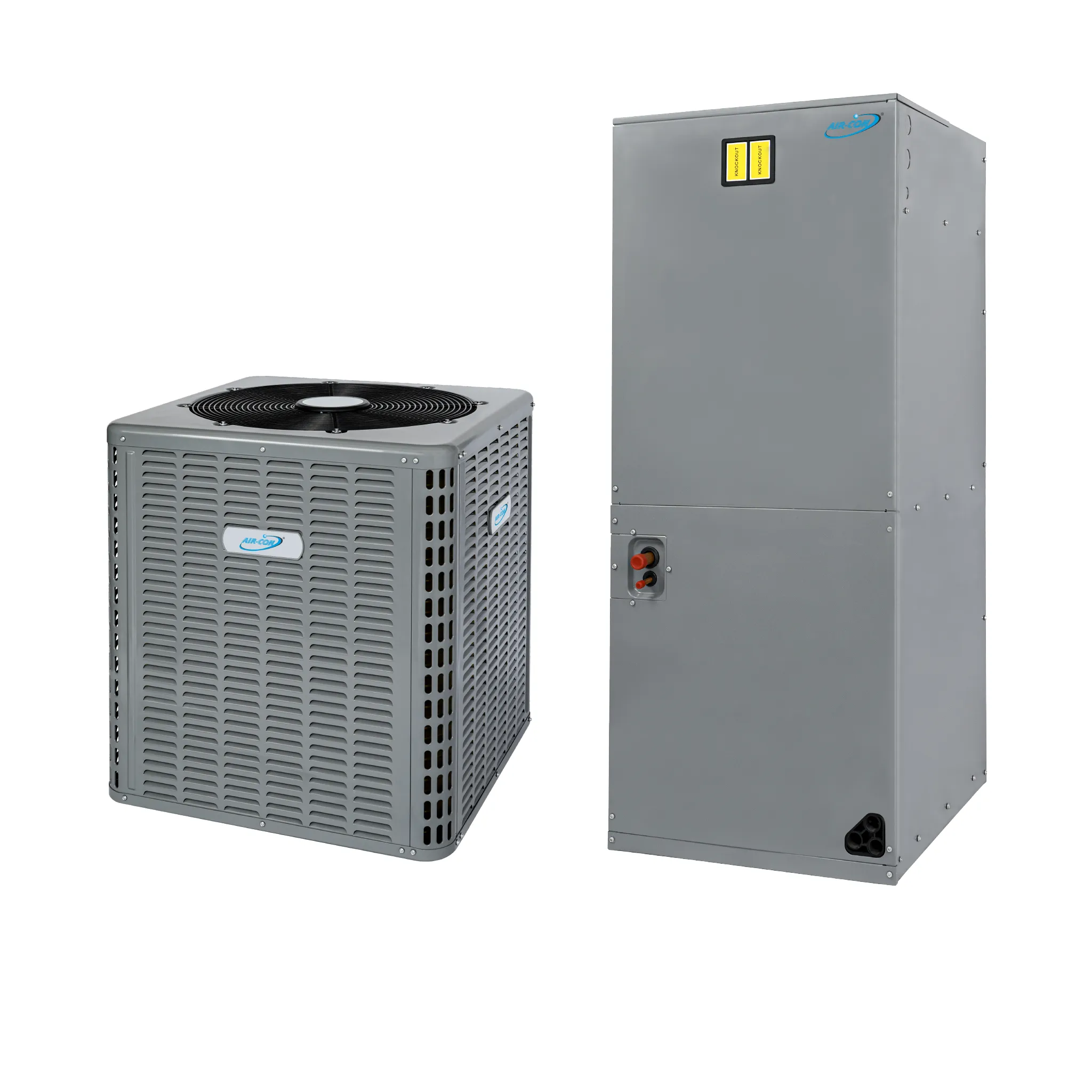

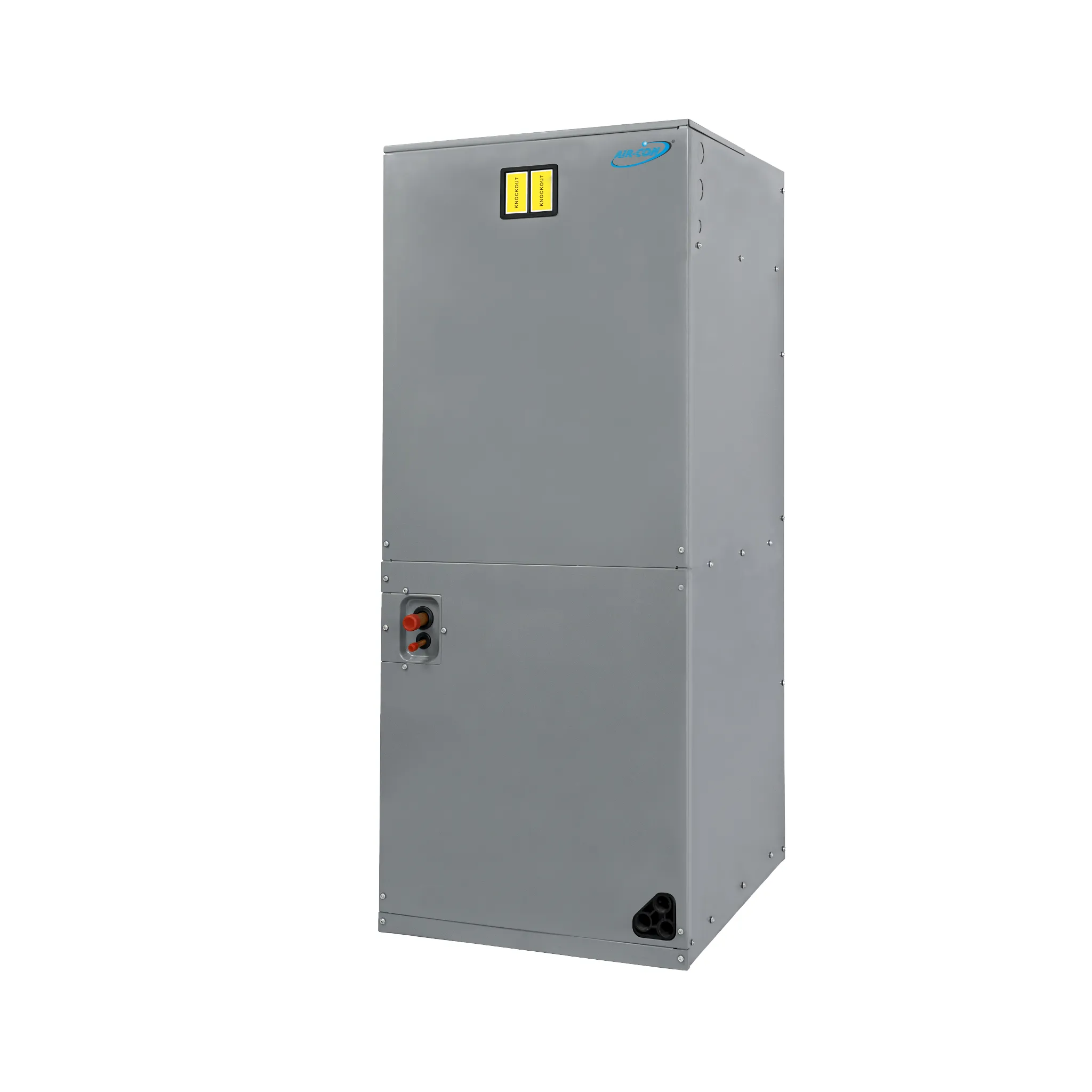

Heat & Cool - The Air-Con Saturn Series top discharge air conditioner system can heat or cool your home for year-round comfort. This set includes the indoor air handler and outdoor condenser unit.
Energy Savings - With a 14.3 SEER2 rating, you can save money on your monthly electricity bill compared to older installations. This unit is SEER2 compliant.
Note: Licensed HVAC technician required for proper installation and maintenance.
Features:
- Standard On/Off Air Conditioner System
- Heats & Cools
- Accepts any standard thermostat
- Smaller outdoor footprint
Tech & Specifications
Specifications
| Model | ATSEM4H4T18/ ATSCV4H4T18 | ATSEM4H4T24/ ATSCV4H4T24 | ATSEM4H4T30/ ATSCV4H4T30 |
ATSEM4H4T36/ ATSCV4H4T36 |
| Ton | 1.5 | 2 | 2.5 | 3 |
| Voltage/ Frequency/ Phase | 208/230V - 60Hz - 1 phase | 208/230V - 60Hz - 1 phase | 208/230V - 60Hz - 1 phase | 208/230V - 60Hz - 1 phase |
| Cooling Capacity | 17500 | 22000 | 28000 | 33000 |
| Heating Capacity | 17500 | 22000 | 26000 | 33000 |
| Amperage | 11.50 | 15.00 | 17.00 | 23.00 |
| SEER2 | 14.3 | 14.3 | 14.3 | 14.3 |
| Indoor Unit Dimensions | 19-2/3"×45-3/4"×22" | 19-2/3"×45-3/4"×22" | 19-2/3"×45-3/4"×22" | 19-2/3"×45-3/4"×22" |
| Outdoor Unit Dimensions | 23-3/5"×25"×23-3/5" | 23-3/5"×25"×23-3/5" | 23-3/5"×25"×23-3/5" | 29-1/7"×25"×29-1/7" |
| Lineset Size | 3/8" & 3/4" | 3/8" & 3/4" | 3/8" & 3/4" | 3/8" & 3/4" |
| AHRI# | 211597889 | 211597890 | 211597891 | 211597892 |
| Model | ATSEM4H4T42/ ATSCV4H4T42 |
ATSEM4H4T48/ ATSCV4H4T48 |
ATSEM4H4T60/ ATSCV4H4T60 |
| Ton | 3.5 | 4 | 5 |
| Voltage/ Frequency/ Phase | 208/230V - 60Hz - 1 phase | 208/230V - 60Hz - 1 phase | 208/230V - 60Hz - 1 phase |
| Cooling Capacity | 40000 | 45000 | 56000 |
| Heating Capacity | 44000 | 44000 | 53000 |
| Amperage | 28.00 | 29.50 | 37.00 |
| SEER2 | 14.3 | 14.3 | 14.3 |
| Indoor Unit Dimensions | 19-2/3"×45-3/4"×22" | 22"×53-1/8"×24" | 22"×53-1/8"×24" |
| Outdoor Unit Dimensions | 29-1/7"×32-7/8"×29-1/7" | 29-1/7"×32-7/8"×29-1/7" | 29-1/7"×32-7/8"×29-1/7" |
| Lineset Size | 3/8" & 3/4" | 3/8" & 3/4" | 3/8" & 3/4" |
| AHRI# | 211597893 | 211597894 | 211597895 |
Warranty Details
10 Year Parts Warranty, 10 Year Compressor Warranty
