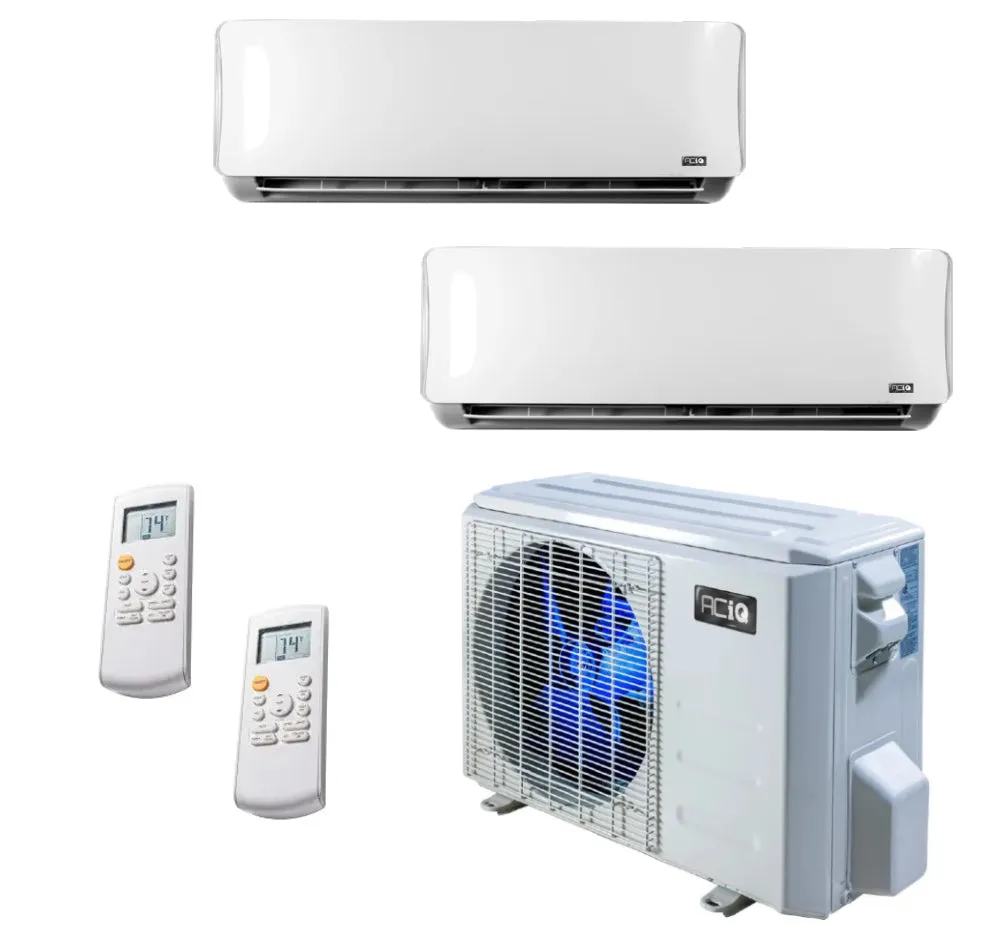

12,000 BTU 22.9 SEER2 ACiQ 2-Zone Wall Mounted Mini Split System w/ WiFi - 6 6
ACiQ's Energy Star multi zone mini split systems are designed to give you maximum efficiency at a lower cost than the Max Heat models. The 12,000 BTU 22.9 SEER2 ACiQ 2-Zone Wall Mounted Mini Split System provides heat down to -13 degrees and cooling as high as 122 degrees outside temperatures, all at a very competitive price.

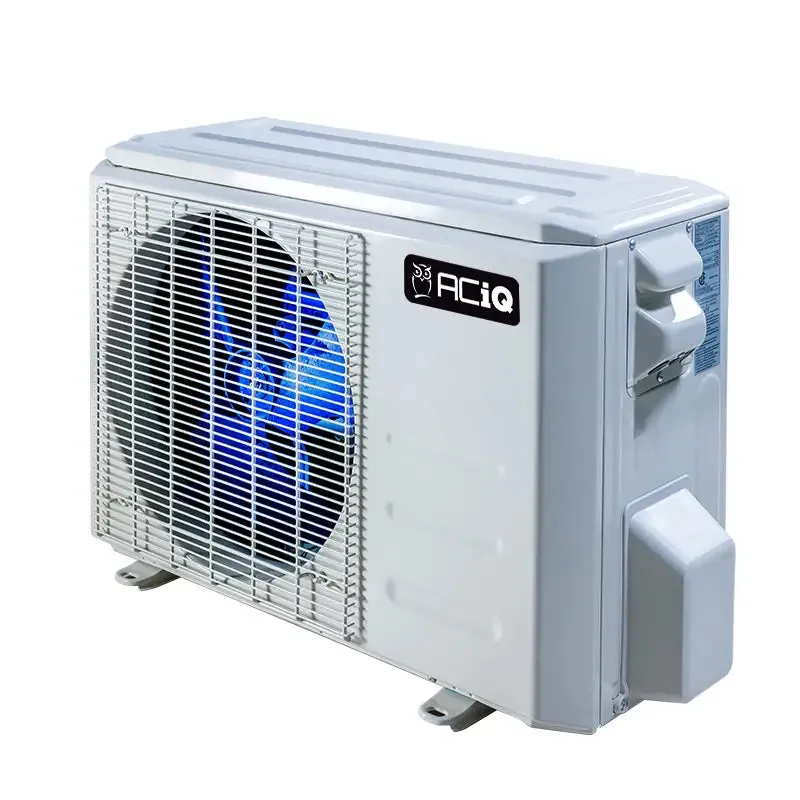

18,000 BTU ACiQ Energy Star Multi Zone Condenser
The 18,000 BTU, ES-18Z-M2B is designed to easily support up to 2 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.9 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Features:
- 18,000 BTU, 22.9 SEER2 multi zone heat pump condenser
- Designed to function with up to 2 attached air handlers
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads

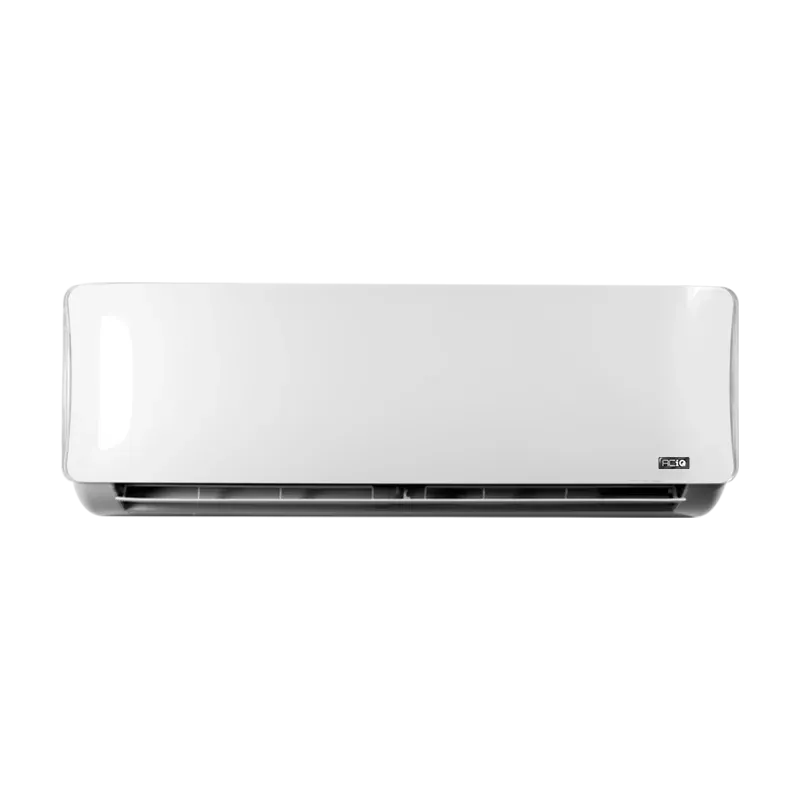

6,000 BTU ACiQ Platinum Multi Zone Air Handler w/ WiFi
Enjoy whisper quiet cooling and heating from a lightweight, attractive High Wall. Turn that hard to heat and cool area into a comfortable space and a welcome retreat. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features:
- 6,000 BTU wall mounted air handler with included remote control
- Ideal for spaces up to 300 square feet (depending on climate)
- WiFi capable using the free Net Home Plus app, Google Home, or Alexa
- Easy maintenance and installation
- Multizone compatible heat or cool multiple rooms on one outdoor unit
- Enhanced Dry mode, intelligent sleep mode, power save mode.
Condenser Specifications:
Brand | ACIQ |
SKU | ES-18Z-M2B |
Refrigerant Charge | 50' |
Weight (in lbs) | 108.690000 |
AHRI Certificate Number | 210857383 |
HSPF2 | 10.5 |
Cooling BTU | 18000 BTU |
Heating BTU | 19000 BTU |
Maximum CFM | 1764.71 |
Decibel Level (dBA) | 58.50 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
SEER2 (Efficiency) | 22.9 |
Compressor Type | Rotary |

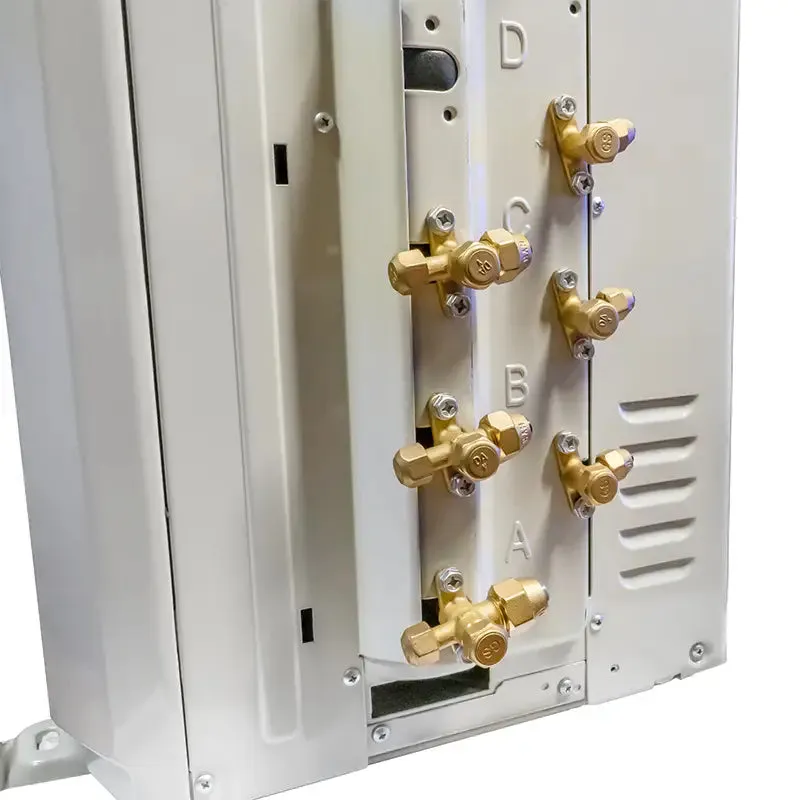

Liquid Line | 1/4" (2) |
Suction Line | 3/8" (2) |

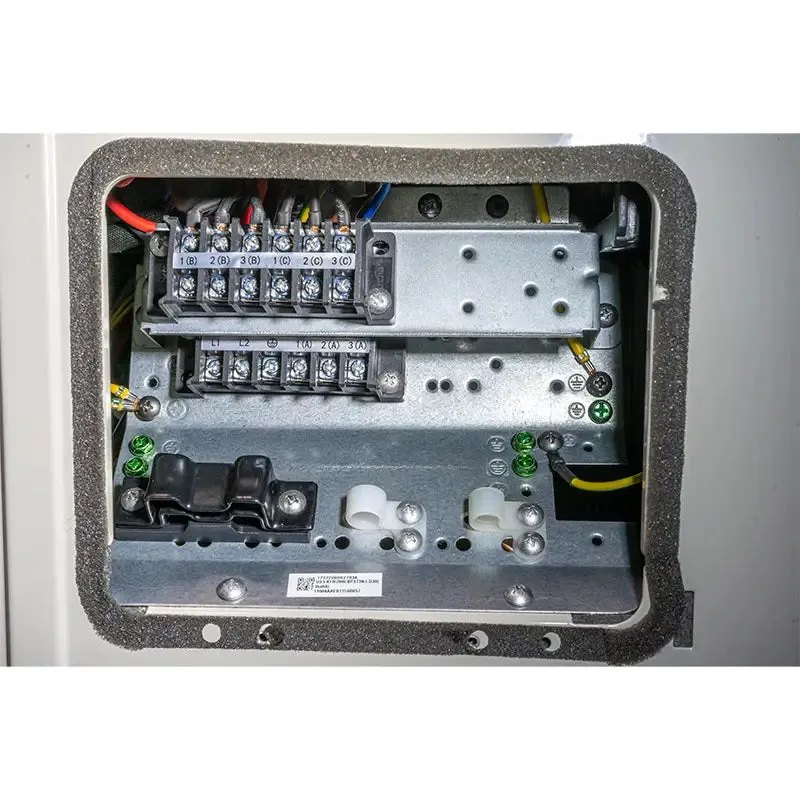

Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 25 A |
Min. Breaker Size | 18 A |
Tonnage | 1.5 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Ambient Temperature Range | -15 ~ 122 |
Height | 26.50" |
Width | 35.04" |
Depth | 13.46" |
Warranty | 12 year compressor, 7 year parts with online registration |
Safety Information | PROPOSITION 65 WARNING |
6K BTU Air Handler Specifications:
Brand | ACIQ |
SKU | ACiQ-06W-HH-MC |
Weight (in lbs) | 28.880000 |
Cooling BTU | 6000 BTU |
Heating BTU | 7000 BTU |
Maximum CFM | 364.71 |
Decibel Level (dBA) | As low as 23 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 6,000 BTU/0.5 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Height | 11.76" |
Width | 33.40" |
Depth | 9.18" |
Warranty | 12 year compressor, 7 year parts with online registration |
Safety Information | PROPOSITION 65 WARNING |
Product Information and Guides:
Condenser
6K BTU Air Handler
